What you’ll build
The bed is two 2x6 boards high, with 41″ front and back boards and 17″ sides between 4x4 corner posts. The two back posts run up to 66″ and hold a 2x3 top rail, three horizontal 1x2 slats, and two vertical 1x2 slats.
Shopping list
Buy these boards. The list fits every cut onto standard lengths and leaves ⅛″ for each saw cut and ¼″ for trimming board ends.
| Lumber | Length | Qty |
|---|---|---|
| 4x4 | 8 ft | 2 |
| 2x6 | 8 ft | 3 |
| 2x3 | 8 ft | 1 |
| 1x2 | 8 ft | 3 |
Cut list
All 18 parts, grouped so you can cut matching pieces together. Exact lengths and end-cut angles for every part are in the free plan in the TimberLab app.
| Part | Lumber | Qty |
|---|---|---|
| Panel | 2x6 | 4 |
| Panel | 2x6 | 4 |
| Slat | 1x2 | 3 |
| Front Leg | 4x4 | 2 |
| Back Leg | 4x4 | 2 |
| Slat | 1x2 | 2 |
| Top Rail | 2x3 | 1 |
Tools
- Tape measure
- Pencil
- Speed square
- Eye & ear protection
- Drill
- Miter saw
- Clamps
- Sander
Step-by-step instructions

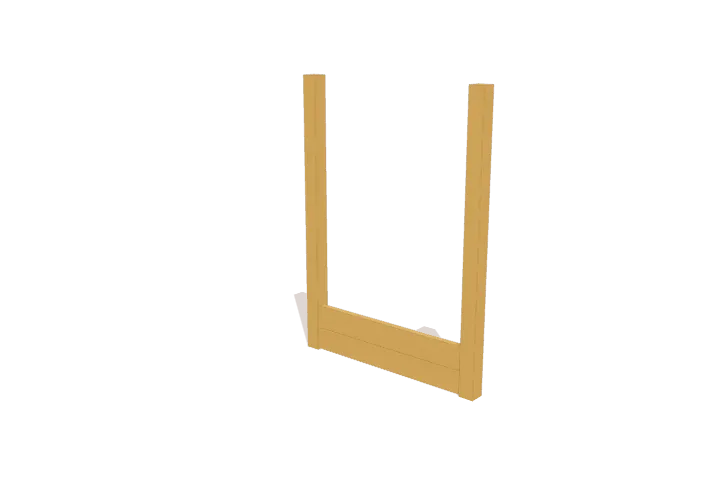

Assemble the rear wall frame
Lay the two 66-inch back posts parallel on a flat work surface. Position the 41-inch lower and upper back planter boards between the inner post faces, aligning the bottom board flush with the post base. Clamp the parts firmly while keeping the frame square.

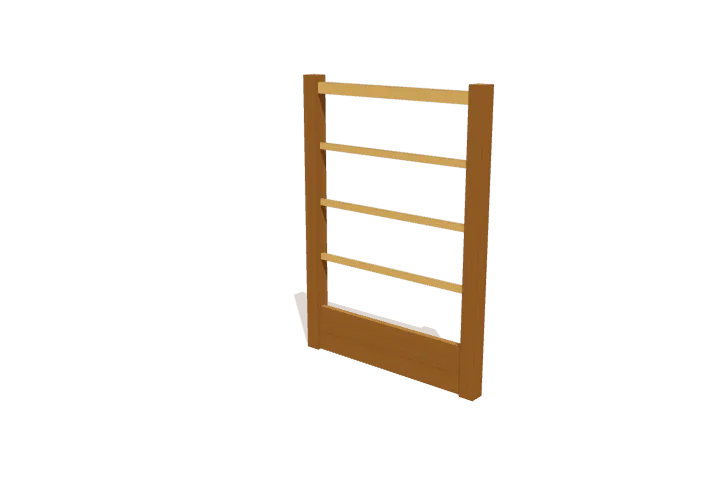

Install horizontal trellis framing
With the rear frame still flat, place the 41-inch top trellis rail flush between the tops of the posts. Position the three 41-inch horizontal slats evenly between the upper planter board and top rail. Clamp all pieces securely against the post inner faces.
Assemble the front wall frame
Connect the planter side walls
Place vertical trellis slats
Get the full plan: all 5 steps and every cut length.
Download TimberLab and open Raised bed with trellis in the catalog to get every cut length and end-cut angle, all 5 assembly steps in 3D, and Timbo, the AI build helper. Catalog plans are free to open; some features, such as AI edits, require a subscription.
Cedar and other naturally rot-resistant woods are common choices for vegetable beds. If you plan to use pressure-treated lumber for food crops, check your local extension service’s guidance first. Use exterior-rated screws.
Change the size or design
This plan is one of the projects in the TimberLab app’s catalog. In the app you can turn the model in 3D, follow the assembly steps one part at a time, and ask for changes in plain words, such as “make it 6 inches shorter” or “add a shelf”. The cut list and shopping list update to match the new design.
Questions about this plan
How much lumber do I need to build this raised bed with trellis?
The shopping list calls for 2 × 4x4 at 8 ft; 3 × 2x6 at 8 ft; 1 × 2x3 at 8 ft; 3 × 1x2 at 8 ft. It groups every cut onto standard board lengths and leaves room for saw cuts and trimming the board ends.
How big is the finished raised bed with trellis?
It is 48″ wide, 66″ tall, and 24″ deep.
What tools do I need?
You need a tape measure, pencil, speed square, eye & ear protection, drill, miter saw, clamps, sander.
Can I change the size of this raised bed with trellis?
Yes. Open the raised bed with trellis in the TimberLab app and describe the change in plain words, such as “make it 6 inches shorter”. The 3D model, cut list, and shopping list update together.
Where can I get the full raised bed with trellis plan?
The full plan, with every cut length and all 5 assembly steps in 3D, is free in the TimberLab app. Download TimberLab on the App Store and open the raised bed with trellis in its catalog.
